Wts506 Pro Iot Weather Station

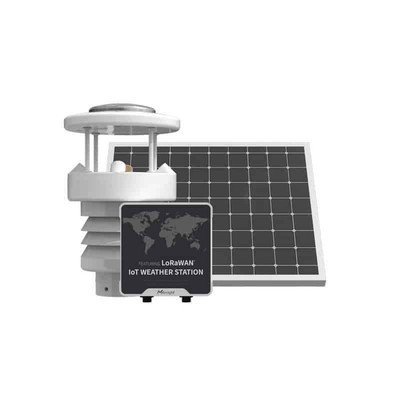

WTS506 Pro IoT Weather Station
All-in-One Weather Station
Specially designed for continuous weather monitoring, Milesight IoT Weather Station (WTS Series) is an ultimate all-in-one weather monitoring system with WTS Sensors, WTS Hub, and solar panel for various atmospheric conditions. Professional Version WTS505 & WTS506 Temperature, humidity, wind speed, wind direction, barometric pressure, rainfall (WTS506 only) High resolution and accuracy with research-grade measurement data Robust aluminum alloy with resistance to rust, corrosion and oxidation Weather monitoring for challenging or accuracy-focus environments like flash flood warning, national meteorological monitoring, etc.
Smart Agriculture
Get reliable data faster so you can plan, react, and grow better.
Agricultural production depends mostly on environmental conditions, whereas
Smart Agriculture Solution provides a one-stop suite to automatically collect and analyze data about various atmospheric conditions including temperature, humidity, light, soil moisture, electrical conductivity and many more for smart agriculture remotely and timely, acting as a perfect guide for a fully automated management.
Highlights

Accurate, reliable and automated environment monitoring and analyses

Save time, money and resources

Improve yield and quality of plants

Smart Building
Precise measurements to gain actionable insight into changing weather conditions.
Milesight IoT Weather Station provides the most important weather data in just one device for buildings like office building, apartment building, smart home, etc, protecting your buildings against sudden and unexpected changes in weather, as well as keep people safe and sound.
Highlights

Reliable and real-time weather monitoring

Save energy and resources by automation

Stay comfortable and safe

Solar-Powered & Chargeable Batteries Backup IoT Weather Station utilizes solar power to achieve operation. With built-in batteries, it can work at least a week without sunlight due to its low-power consumption capability.
LoRaWAN Based Penetrating Signals:

 data transmission range up to 2 km in urban areas and 15km in rural areas

High Compatibility:

compliant with standard

gateways and network servers

Store Capacity with 19000 Sets of Historical Data Records Data can be stored in the device and cannot be manually deleted, further securing the traceability of the reported information.
Support Retransmission for Reliable Communication
With support for data retransmission,the device guarantees that the web server gets all the data even if the network is down occasionally. Robust and Rugged Milesight IoT Weather Station is qualified to work in harsh and wet environment with IP65 rating of its WTS Sensors and IP67 rating of its WTS Hub to protect against powerful jets of water.
Easy Configuration
1 st
Step
Install the Milesihgt ToolBox
2 nd
Step
Enable NFC and run ToolBox, then attach your phone to the device
3rd Step
Verify the password and start configuring

Integrated with multiple sensors like humidity, temperature, barometric pressure, wind speed, wind direction, rainfall, etc.

Waterproof, UV-proof and salt spray resistant enclosure for outdoor harsh environment applications

 High power solar powered with chargeable batteries backup

 Store locally more than 19, 000 historical records and support retransmission to ensure no data miss

 Easy to carry and install

 Ultra-wide-distance wireless transmission up to the line of sight of 15 km in rural areas

 Equipped with NFC for easy and quick configuration

 Compliant with standard LoRaWAN® gateways and network servers

 Quick and easy management with Milesight IoT Cloud

WTS Sensors
Temperature Operating Principle: Thermistor Range: -40°C – 85°C Accuracy: ± 0.3°C Resolution: 0.1°C
Humidity Operating Principle: Capacitive humidity sensor Range: 0% – 100% RH Accuracy: ± 3% RH Resolution: 0.5% RH
Wind Direction Operating Principle: Ultrasonic Range: 0° – 360° Accuracy: ± 3° Resolution: 0.1°
Wind Speed Operating Principle: Ultrasonic Range: 0 -60 m/s Accuracy: ± 0.3 m/s or ± 3% (whichever is greater) Resolution: 0.1 m/s
Barometric Pressure Operating Principle: Piezoresistive absolute pressure sensor Range: 500 – 1100 hPa Accuracy: ±0.5 hPa Resolution: 0.1 hPa
Rainfall (WTS506 Only) Operating Principle: Piezoelectric Range: 0 – 500 mm Accuracy: ±0.5 mm (< 10 mm), ±5 %( >10 mm) Resolution: 0.01 mm
Physical Characteristics Material: Aluminium Alloy Weight: 2.15 kg Dimension: ф160 x 263 x ф73 mm Operating Temperature: -40°C to +85°C Relative Humidity: 0% – 100% (non-condensing) Ingress Protection: IP65 Installation: Pole Mounting WTS Hub
Wireless Transmission Technology: LoRaWAN Frequency: CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923-1&2&3&4 Max Tx Power: 16dBm (868MHz)/22dBm (915MHz)/19dBm (470MHz) Sensitivity: -137dBm @300bps Work Mode: OTAA/ABP Class A
Operation Power On & Off: Mobile App (via NFC), PC Software (via USB Type-C), Power Button (Internal) Configuration: Mobile App (via NFC) or PC software (via USB Type-C)
Physical Characteristics Power Supply: Solar powered (15 W, 1A) with 2 × 2550 mAh chargeable batteries backup Operating Temperature: -20°C to +60°C Relative Humidity: 0% to 95% (non-condensing) Ingress Protection; IP67 Dimension: 116 × 116 × 45.5 mm Installation: Screw Mounting Solar Panel
Electrical Characteristics Open-Circuit Voltage: 18 V (± 0.3 V) Rated Voltage: 15 V (± 0.3 V) Rated Current: 1 A (± 5%) Maximum Power: 15 W (± 5%) Minimal Power: 14.5 W (± 5%)
Physical Characteristics Cell Type: Monocrystalline Silicon Operating Temperature: -20°C to +80°C Weight: 1 kg (Without Bracket), 2.2 kg (With Bracket) Dimension: 343 × 283 × 16.5 mm

All-in-One Weather Station

Solar-Powered & Chargeable Batteries Backup

Robust and Rugged

Data Storage and Retransmission

Various Application Scenarios

LoRaWAN Based

Easy Configuration (via NFC)

US915 Support
